Precision Products. Professional Service.
Operational Features
- 360° rotating D-handle provides comfortable positioning and improved control in virtually any drilling orientation.
- Three-speed, oil-lubricated transmission allows the operator to select the optimal drilling speed for different core bit sizes and materials.
- Variable-speed trigger provides greater control throughout the drilling process.
- Designed for hand-held operation with core bits up to 3" (76 mm) or rig-mounted operation with core bits up to 8" (203 mm).
- Combination spindle accepts both 1-1/4"-7 male and 1/2" female threaded core bits.
Package Contents
- ProCore™ Series 3S Core Drill
- Heavy-duty carrying case
- Wrench
- Operator's manual
Safety
- Mechanical slip clutch helps protect both the operator and the drill from sudden binding during operation.
- Integrated GFCI (Ground Fault Circuit Interrupter) enhances operator safety when drilling with water.
- Three-prong grounded power cord for safe operation on standard 120V circuits.
Optional core drill stand available for larger diameter drilling applications (P/N: 433-30000). See the Core Drill Accessories page to order.
Product Specifications
| Specification | Value |
|---|---|
| Model | ProCore™ Series 3S |
| Product Number | 433-24000 |
| Rated Voltage | 120V |
| Amperage | 15A |
| Rated Frequency | 50/60 Hz |
| Rated Input Power | 1,800W (2 HP) |
| No-Load Speed | 0–4,000 RPM |
| Transmission | 3-Speed, Oil-Lubricated |
| Weight | 6.5 kg (14.33 lbs.) |
| Stand | Optional |
| Maximum Drilling Diameter (Hand-Held) | 3" (76 mm) |
| Maximum Drilling Diameter (Rig Mounted) | 8" (203 mm) |
| Warranty | 1 Year Limited |

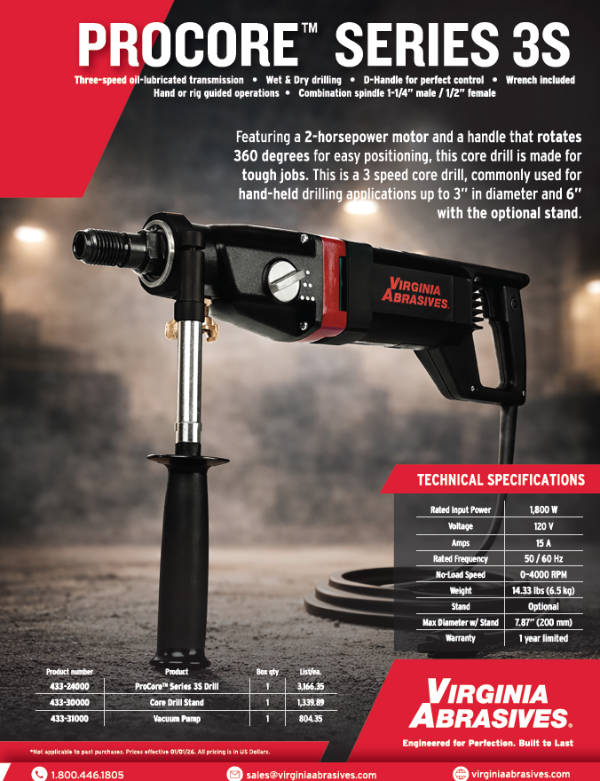

See our Pro Core™ brochure!

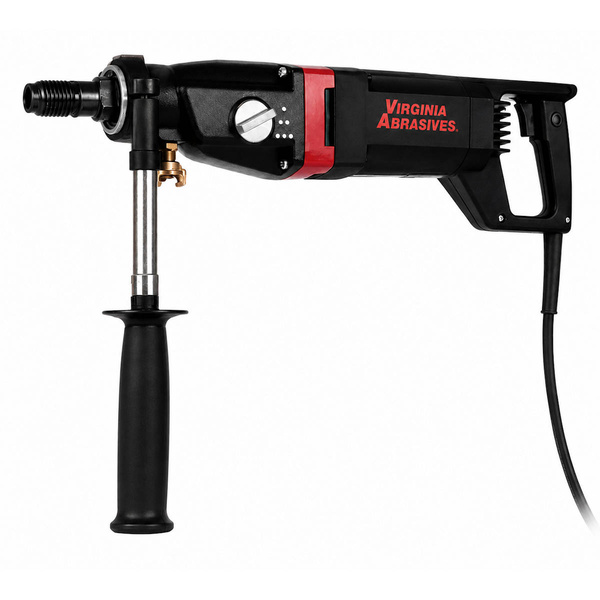

ProCore™ Series 3S Core Drill
The Virginia Abrasives ProCore™ Series 3S Core Drill offers high torque, smooth operation, and rugged construction for the professional contractor. Designed for both hand-held and rig-mounted operation, the Series 3S is ideal for concrete and masonry coring in plumbing, electrical, HVAC, and general construction applications. Its powerful 2 HP motor, three-speed transmission, and ergonomic design deliver the versatility and control needed to tackle a wide range of drilling jobs with confidence. Built to withstand demanding jobsite conditions and compatible with industry-standard core bits, the ProCore™ Series 3S combines durability, precision, and dependable performance in one professional-grade package. Whether you're drilling occasional openings or performing continuous commercial coring, the Series 3S is engineered to maximize productivity while delivering the reliability contractors expect from Virginia Abrasives.
